LANDOLL TRAVELING TAIL MODEL 930/950 SERIES

Looking for a reliable solution for transporting heavy equipment and machinery? Explore the LANDOLL Traveling Tail Model 930/950 Series. With its innovative traveling tail design, these trailers offer unparalleled versatility and efficiency for loading and unloading. Quick, simple, safe operation and a longer wheelbase that increases payload. A 15′ tail reduces the load angle to a low 11°. Frames are steel shot blasted in preparation for the TGIC polyester powder coat paint finish standard on 900 Series trailer. The tail can raise and lift 24,000 lbs up to 57″ dock height. The 900 E Series is backed by a 5-year structural warranty.

Whether you’re in construction, agriculture, or logistics, trust the 930/950 Series to streamline your transportation operations. Discover more at Apple Truck and Trailer today.

Looking for a 900 Series Landoll? Contact us today for access to our selection of Landoll 930E and 950E Trailers in Massachusetts.

Landoll 930 For Sale in Massachusetts

930E – Maximize Payload and Profitability

The Landoll 930E Traveling Tail is part of the 900 E Series trailers. The tail is capable of lifting 24,000# up to 53″ dock height. Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge. The longer wheelbase gives you proper weight distribution between tractor and trailer and fully supports the tail.

The traveling tail concept allows for stable dock loading and increases your payload by having a longer wheelbase.

Landoll 930E/950E Features, Options & Specs

FEATURES

Frame and Features

  • *Capacity: 35 Ton (70,000 lbs.)
  • Deck Rating: 50,000 lbs. in 10′
  • Estimated Base Weight: 16,300 lbs. (48′) +/-3%
  • Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
  • Crossmembers: 4″ Junior I-Beam and 3″ Junior I-Beam on 8″ Centers
  • Slope Drop: 90°
  • Parking Stands: Jost Two Speed Landing Gear
  • Pin Setting: 18″
  • Swing Clearance: 84″
  • Hitch: Fifth-Wheel Kingpin
  • Deck Width: 102″
  • Loaded Deck Height: 38″
  • Loaded Ground Clearance: 20″
  • Decking: 1-3/8″ Nominal Apitong (Lower Deck)
  • Tool Box: Twin Upper Deck Mounted Top-Opening with Non-Weight Bearing Lid Illuminated
  • Tie Downs: Double Key Hole Chain Slot / Gotchas on 16″ Centers / (6) Double Keyhole Chain Slots on Tail / (2) D-Rings Lower Slope at Deck
  • Tail Lifting Capacity: 24,000 lb.
  • Load Angle: 11° with 15′ Tail
  • Features: Automatic Slack Adjusters, Flat Approach Plate, Apitong Wood Covered Tail, Center Deck Keyholes on Tail, Bolt-On Traction Plate Over Approach Plate

Slope Ramp:

  • 6′ x 102″ Upper Deck Ramp (Air Operated) (10,000 lb. Capacity) (11.5° Load Angle)

Suspension and Undercarriage

  • Suspension: Neway Air Ride RLU228, 22,500 lb. Capacity with Manual Dump Valve
  • Undercarriage: Centralized Grease System
  • Axles: (2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Outboard Brake Drum, Automatic Slack Adjusters
  • Axles Prepped for Air Inflation
  • Brakes: 12.25×7.5 Full Air / Spring Brakes ABS, 4S2M
  • Tires: 235/75R 17.5 LRJ Double Coin Tires
  • Rims: 17.5×6.75 Tubeless
  • Wheels: Steel Hub Pilot
  • Oil Seal Hubs: Internal Mated Assembly

Hydraulics

  • Hydraulic Hook Up: Quick Couplers / 2,500 PSI – 20 GPM at Controls, 50 GPM Max
  • Hydraulic Winch: Upper Deck 12,000 lb. Worm Gear with 85′ of 1/2″ Cable with Wear Plate
  • Hydraulic Valve Body: Rexroth

Electrical

  • Air / Electrical: 7 Way Receptacle
  • Lights: Grote MicroNova LED Clear Lens-Enhanced Stop, Tail & Turn; Rear Amber Strobe-10 Year Warranty
  • Wiring Harness: Grote “Xtreme” Wiring Harness (7-Year Warranty)

Finish and Color

  • Finish: Steel Grit Shot Blast to Bright Metal
  • Color:  Zinc Rich Primer
  • Powder Coat Color: White/Black/Yellow/Blue/Red/Green/Metallic Gray/Sapphire Blue
  • Decals: Hi-Visibility Reflective Package

Options

Bulkheads:

  • 16″ / 24″ 2 – Position Bulkhead / Front Extension (Solid) (1,500 lb. Capacity 3,000 lb. Distributed) Powder Coated Black
  • 48″ High Mesh 102″ Powder Coated Black
  • Steel Bulkhead Wings
  • Aluminum Bulkhead Wings
  • Bolt-On Binder Storage Rack for 48″ Bulkheads
  • LED Work Light – Dual (Mounted on Bulkhead)
  • Aluminum Light Bar, Bulkhead Mounted, Includes Dual LED Work Lights, Stop / Turn / Tail Lights, Aluminum Chain / Binder Rack
  • Spare Tire Carrier – 48″ Bulkhead, Front Mounted
  • Spare Tire Carrier – 48″ Bulkhead, Rear Mounted
  • Spare Tire Carrier – Front Pocket Mounted
  • Dual LED Strobe Beacons

Parking Stands:

  • Pin Drop in Lieu of Standard

Tie Down Rings:

  • Flush Mounted D-Rings (Each)
  • D-Ring Bolt-On at Winch (Each) (Two Locations Available)
  • Recessed Mounted D-Rings (Each) (Not Totally Recessed with Additional Crossmembers)

Winch and Accessories:

  • 20,000 lb. Worm Gear Winch in Lieu of 12,000 lb. Standard. Upper Deck
  • 20,000 lb. Warn Planetary Winch, 2 Speed, with Air Release / Spring Tension in Lieu of Standard
  • 30,000 lb. Warn Planetary Winch, 2 Speed, with Air Release / Spring Tension in LIeu of Standard
  • Delete Standard 12,000 lb. Winch
  • Guard, Winch 12/20K (Cannot be Used in Conjunction with Pivoting Cable Roller Guide)
  • Cable Roller Guide for Winch – 12,000 lb. or 20,000 lb.
  • Pivoting Cable Roller Guide for Winch with Air Tension / Air Release – 20,000 lb.
  • Wireless Remote Control – Six Function for Rexroth Valve

Deck and Accessories:

  • Toolboxes- Non-Load Bearing Top Opening Toolboxes (Standard)
  • Toolboxes- Load Bearing, Self-Supporting, Top Opening Toolboxes
  • Toolboxes- Side Opening Toolboxes
  • Traction Bars for Tail – Weld On 12′ Tail (1” Sq. 6” Spacing) (Recommended when loading Track Equipment)
  • Traction Bars for Tail – Weld On 15′ Tail (1” Sq. 6” Spacing) (Recommended when loading Track Equipment)
  • Bolt-On Steel Landoll Traction Plate over 1” Wood on Tail
  • Keyhole Tie Downs for Center Main Deck (Level with wood)
  • Double Drop Deck in Lieu of Standard (Long Frame Only) (48-12) or (51-15)
  • Keyhole Tie Downs for Center Deck (Level with Wood)
  • Lower Deck Bolt-On Lockable Tool Box (Curb Side or Street Side) (42″W x 28″ D x 9″H)
  • Swing Out Side Turn Signal / Emergency Flasher Lights (1) Pair, Locations Available, Upper Deck Behind Tool Box, Lower Deck Behind Center Turn Light (1) Pull-Out Step (Drivers Side and/or Curb Side Available)

Suspension and Undercarriage:

  • Air-Weigh Digital Scale System Bluetooth Loadmax Plus/ Quickload Plus
  • Galvanized Bumper in Lieu of Standard Painted Bumper

Hydraulic Power Source:

  • Wet Kit for Tractor (Includes 30 Gallon Steel Tank)
  • Shipped Loose with Trailer or Factory Installed
  • Hydraulic Quick Couplers 1 Male / 1Female (Matches Trailer) (P/N 105902)
  • Polished Aluminum Hydraulic Tank, (19″W x 24D”) (Side Mount) in Lieu of Standard
  • Hydraulic Engine Package – Upper Deck with Cover Kohler EFI 25 HP Gas
  • Hydraulic Engine Package – Kohler 25 EFI HP Gas – Under Deck Mount (Not Available with Upper Deck Ramp)

Tire and Rims:

  • 235/75R 17.5 Continental Tires in Lieu of Standard
  • 245/70R 17.5 Michelin (Multi T) LRH Tires in Lieu of Standard (235 Not Avail)
  • 255/70R 22.5 Double Coin Tires in Lieu of Standard
  • 255/70R 22.5 Michelin Tires in Lieu of Standard
  • Spare Double Coin Tire and Hub Pilot Type Rim (235/75R 17.5)
  • Spare Continental Tire and Hub Pilot Type Rim (235/75R 17.5)
  • Spare Michelin Tire and Hub Pilot Type Rim (245/70R 17.5)
  • Spare Double Coin Tire and Hub Pilot Type Rim (255/70R 22.5)
  • Spare Michelin Tire and Hub Pilot Type Rim (255/70R 22.5)
  • 17.5 Aluminum Wheel (8-Bolt Polished) in Lieu of Standard, (Each)
  • 17.5 Aluminum Wheel (8-Bolt Machined) in Lieu of Standard (Each)
  • 22.5 Aluminum Wheel (10-Bolt Polished) in Lieu of Standard (Each)
  • 22.5 Aluminum Wheel (10-Bolt Machined) in Lieu of Standard (Each)
  • Hubometer
  • Pressure Guard Tire Inflation N/A
  • Crossfire Air Equalizers (Price per Axle)

Paint and Special Options:

  • Hot Dip Galvanizing (Trailer Frame is Totally Submerged) – Adds Minimum of 3 Weeks to Delivery
  • Paint Over Galvanizing – Sides Only with Standard Colors Only
  • Paint Over Galvanizing – Top Surface Only with Standard Colors Only
  • Special Paint: Contact Factory

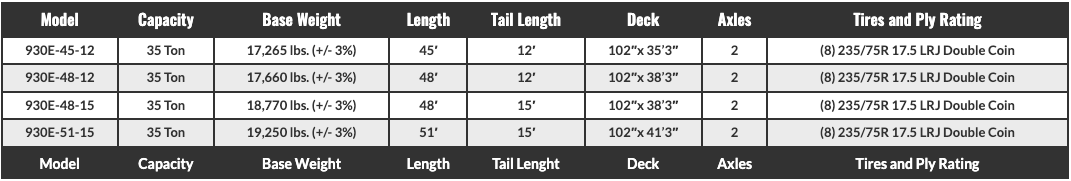

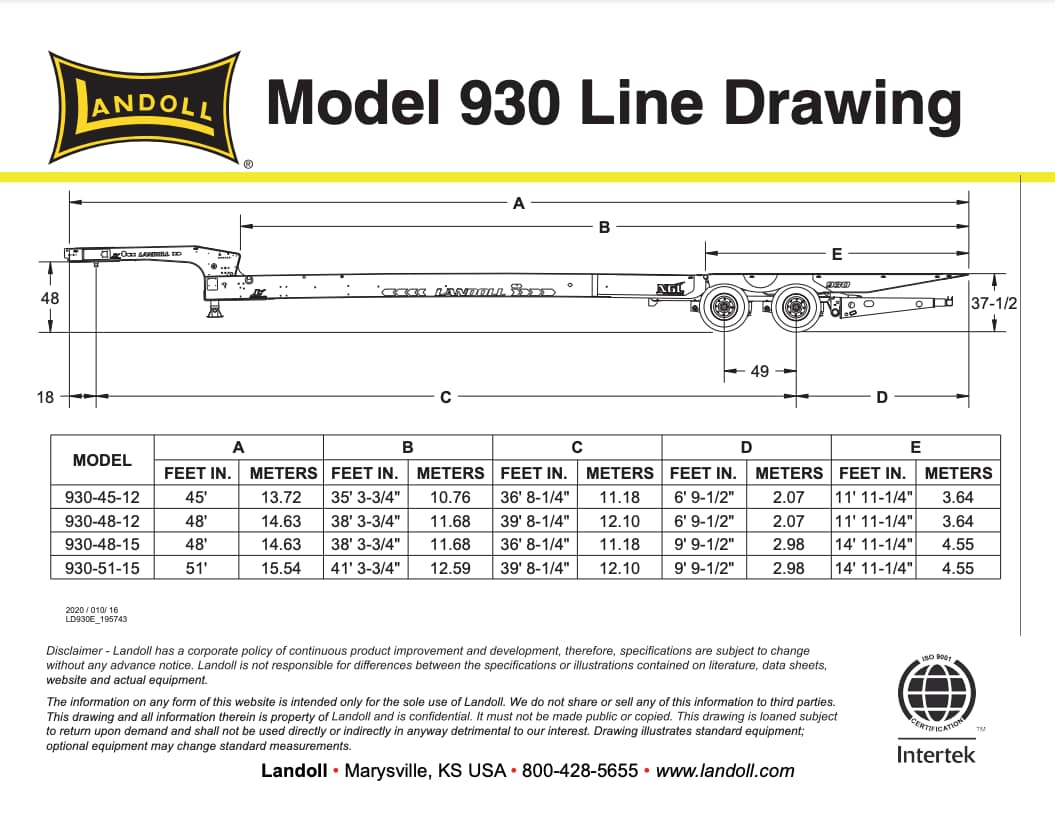

Specs

Landoll 950 for sale Massachusetts

Landoll 950E for sale Massachusetts
