Landoll 440B & 455B For Sale In MASSACHUSETTS
LANDOLL TRAVELING AXLE TRAILER MODEL 440B/455B
Looking for a reliable solution for transporting heavy equipment and machinery? Look no further than the LANDOLL Traveling Axle Trailer Model 440B/455B. Designed for maximum versatility and efficiency, these trailers feature a traveling axle system that ensures stable and secure transport of various loads. With their hydraulic detachable gooseneck and rugged construction, the 440B/455B models are built to withstand the demands of heavy-duty hauling. Whether you’re in the construction, agriculture, or transportation industry, trust LANDOLL’s 400 series trailers to get the job done safely and reliably. Explore our inventory at Apple Truck and Trailer and experience the superior performance of the 440B/455B models today.
Looking for a 400 Series Landoll? Contact us today for access to our selection of Landoll 440B and 455B Trailers in Massachusetts.
The Next Generation Landoll has Arrived!
The Landoll Trailer Line is taking a huge leap forward with the introduction of the all-new hydraulic operating systems, nicknamed H.O.S.S., and High Visibility Lighting package. The 440 and 455 “B” Series Traveling Axle trailers are the first models with these added standard features.
H.O.S.S. cuts the overall operational time in half. The axle traveling forward has increased by 36% and moving back by 58%. Tilt deck positioning has increased to nearly 63%, while winch in and out speeds are closer to 66%. This improvement will allow for more loads to take place.

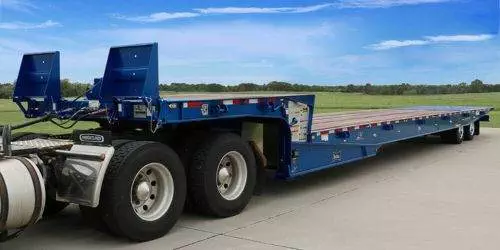

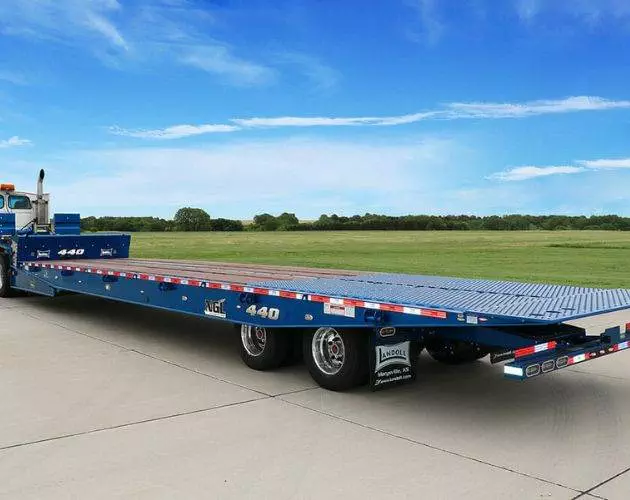

The Landoll 440B is a tandem axle trailer with a capacity of up to 40 tons. It is available in 41′, 48′, 53′, and California legal 50′ lengths. Handle tough equipment including super low clearance pavers with an easy one-man operation.
Low Clearance Upper Deck Transition
All 400 series trailers feature the super low clearance slope transition allowing man lifts, forklifts, and other difficult low clearance equipment to load easily on the upper deck.
Ultimate Stability
The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, outer beam pivot points add superior stability while loading heavy loads.
Powder Coat Paint
Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors.
Railroad Track Option Available
The Landoll 440B and 455B models offer a specialized railroad track option, providing enhanced versatility for transportation needs. This feature allows for seamless movement of equipment between rail and road, making these trailers ideal for industries requiring intermodal capabilities, such as construction and logistics.
Landoll 440B/455B Features, Options & Specs
FEATURES
Frame and Features
- *Capacity: 40 Ton (80,000 lbs.)
- Deck Rating: 50,000 lbs. in 10′
- Estimated Base Weight: To Be Updated.
- Main Frame: Fabricated 80,000 and 100,000 PSI Yield, 40″ Center, Four-Beam Design
- Crossmembers: Alternating 4″ and 3″ Junior I-Beam on 8″ Centers
- Pin Setting: 21″
- Swing Clearance: 80″
- Hitch: 5th-Wheel 2″ Kingpin
- Deck Width: 102″
- Slope Drop: 90°
- Loaded Deck Height: 37″
- Loaded Ground Clearance: 14″ at Bottom of Gooseneck
- Decking: 1-3/8″ Apitong Hardwood
- Load Angle: 6.5°
- Accessories: Flat Approach Plate with 6 Keyhole Tie Downs, Main Deck Center Slope Roller, Very Soft Transition from Lower to Upper Deck
- Tie Downs: Double Key Hole Chain Slots with Square Stake Pockets on 16″ Centers
- Tool Box: Twin Upper Deck Mounted Top-Opening with Non-Weight Bearing Lid Illuminated
- Parking Stands: Jost Two Speed Landing Gear
Supspension and Undercarriage
- Suspension: Neway Air Ride RLU228, 22,500 lb. Capacity
- Undercarriage: (2) 4″ x 126″ – 48′; 4″ x 126″ and 4″ x 138″ – 50′; 4″ x 138″ – 53′; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
- Grease: Centralized Grease System
- Axles: (2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters
- Axles Prepped for Air Inflation
- Brakes: 12.25×7.5 Full Air / Spring Brakes ABS, 4S2M
- Tires: 235/75R 17.5 LRJ Double Coin Tires
- Rims: 17.5×6.75 Tubeless Rims
- Wheels: Steel Hub Pilot
- Oil Seal Hubs: Internal Mated Assembly
Hydraulics
- Hydraulic Hook Up: Quick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max
- Tilt Cylinders: (2) 6″ x 30″
- Hydraulic Winch: 12,000 lb. Worm Gear with Spring Tension and 85′ of 1/2″ Cable
- Hydraulic Valve Body: Rexroth
Electrical
- Air / Electrical: 7-Way Receptacle
- Lights: Grote MicroNova LED Clear Lens-Enhanced Stop, Tail & Turn; Rear Amber Strobe (10-Year Warranty)
- Wiring Harness: Grote “Xtreme” Wiring Harness (7-Year Warranty)
- Turn Signal: Center Mounted Turn Signal
Finish and Color
- Finish: Steel Grit Shot Blast to Bright Metal, Zinc Rich Primer
- Powder Coat Color: White/Black/Yellow/Blue/Red/Green/Metallic Gray/Sapphire Blue
- Decals: Hi-Visibility Reflective Package
Options
Base Options
- Deck Width – 8′ 6″ Wide Deck (Standard)
- Deck Width – 9′ Wide Deck (Canadian RTAC Compliant)
- Deck Width – 10′ Wide Deck (Canadian RTAC Compliant)
- Deck Extensions – 27″ Aluminum Pull-Outs (Capacity Not to Exceed 50% of Trailer Capacity)
- Deck Extensions – Swing-Out Outrigger (Capacity Not to Exceed 50% of Trailer Capacity)
- Hydraulic Kicker Rollers (8 Rollers)
- Arctic Hose Package (Upgrades Air and Hydraulic Lines)
- Heavy Duty Gooseneck (Adds 2′ to Trailer Length and 23.5″ to Swing Clearance)
- Railroad Track for Upper and Lower Deck
- Railroad Track Guide on Approach
Bulkheads
- Bulkhead – 16″/24″ x 102″ 2 Position Bulkhead/Front Extension (Solid, 3,000 Lb. Distributed Capacity) (Powder Coat Black)
- Bulkhead – 48″ x 102″ Mesh Steel Bulkhead (Powder Coat Black)
- NOTE: All Bulkhead options require the 48″ x 102″ Bulkhead
- Bulkhead Wings – Steel Wings (Powder Coat Black)
- Bulkhead Wings – Aluminum Wings
- Aluminum LED Light Bar (Stop, Turn, and Tail Lights) with Chain Binder Rack
- Dual LED Work Lights Mounted on Light Bar
- Dual Class II Strobe Beacons Mounted on Light Bar
- Bolt-On Chain-Binder Rack
- Dual LED Work Lights Mounted on Bulkhead
- Dual Class II Strobe Beacons Mounted on Bulkhead
- Spare Tire Carrier – Rear Mounted
- Spare Tire Carrier – Front Mounted
- Spare Tire Carrier – Dual Front Mounted
- Propane Carrier Mounted on Bulkhead – Rear Street Side Mounted
- Propane Carrier Mounted on Bulkhead – Rear Curb Side Mounted
- Propane Carrier Mounted on Bulkhead – Both Rear Street and Curb Side Mounted
- Propane Carrier Mounted on Bulkhead – Front Street Side Mounted
- Propane Carrier Mounted on Bulkhead – Front Curb Side Mounted
- Propane Carrier Mounted on Bulkhead – Both Front Street and Curb Side Mounted
Parking Stands
- Parking Stands – Pin Drop
- Parking Stands – Jost 2 Speed (Standard)
- Parking Stands – Hydraulic
Winch and Accessories
- Winch – Delete Standard 12K Braden, Worm Gear
- Winch – 20K Braden, Worm Gear
- Winch – 20K Braden, Worm Gear with Pivoting Cable Roller Guide and Air Release/Air Tension
- Winch – 20K Warn, Planetary, 2 Speed with Air Release/Spring Tension
- Winch – 30K Warn, Planetary, 2 Speed with Air Release/Spring Tension
- Winch Guard
- Dual LED Worklights Mounted on the Winch Guard
- Cable Roller Guide (4-Way Rollers)
- Bolt-On D-Rings at Rear of Winch – Street Side
- Bolt-On D-Rings at Rear of Winch – Curb Side
- Bolt-On D-Rings at Rear of Winch – Both Street and Curb Side
- Upper Deck Slope Wear Protection – Slope Roller
- Wireless Remote Control (6 Function: Tilt, Travel, and Winch)
Tie Down
- Flush Mounted Straight D-Ring (Not Available for Web Mount)
- Angled D-Rings (Mounted under Top Flange Outer Beam)
- Low Profile Strap Ratchet
- 3-Bar Strap Ratchet
- J-Hook (Opposite side of Ratchet)
- Stake Pocket (Opposite side of Ratchet)
- Chain Rub Rail (per Foot) (Setting Price based on 440-53 length)
Deck and Accessories
Upper Deck
- Toolboxes- Non-Load Bearing Top Opening Toolboxes (Standard)
- Toolboxes- Load Bearing, Self-Supporting, Top Opening Toolboxes
- Toolboxes- Side Opening Toolboxes
- Toolboxes – Side Opening Toolboxes (remove)
- Toolboxes – Load Bearing, Self-Supporting, Top Opening Toolboxes
- Street Side
- Curb Side
- Both Street and Curb Side
- Front Flip Extension Ramps (In Track Area)
- Slope Filler (Bolt-On, Makes Upper Deck Level)
- Slope Mounted Dual LED Work Lights
Lower Deck
- Folding Step(s) – Street Side (Painted Safety Yellow)
- Folding Step(s) – Curb Side (Painted Safety Yellow)
- Folding Step(s) – Both Street and Curb Side (Painted Safety Yellow)
- Toe Boards (3/8″ x 2-1/2″)
- Skid Plates – Container Skid Plates Flush with Outer Flange (3/8″x6″ for 8′ 6″ Wide Trailer)
- Skid Plates – Container Skid Plates Flush with Outer Flange (3/8″x10-1/2″ for 9′ Wide Trailer)
- Skid Plates – Container Skid Plates Flush with Outer Flange (3/8″x14-3/4″ for 10′ Wide Trailer)
- Skid Plates – Container Skid Plates Flush with Wood Deck (3/8″x6″ for 8′ 6″ Wide Trailer)
- Skid Plates – Container Skid Plates Flush with Wood Deck (3/8″x10-1/2″ for 9′ Wide Trailer)
- Skid Plates – Container Skid Plates Flush with Wood Deck (3/8″x14-3/4″ for 10′ Wide Trailer)
- Deck Straps – Deck Straps Beside Outer Beam (1-1/4″x9″)
- Deck Straps – Deck Straps Beside Inner Beam (1-1/4″x9″)
- Landoll Traction Plate Over Wood 10′ Forward of Approach Plate
- Landoll Traction Plate on Approach (Bolt-On)
Additional Options
- Deck Type – 1/8″ Steel Tread Plate Decking
- Flag Holders – 2 Front Lower Deck and 2 Rear Lower Deck
- Flag Holders – 2 Upper Deck, 2 Front Lower Deck, and 2 Rear Lower Deck
- Flag and Oversized/Wide-Load Banner Kit (Includes 6 Flags and 2 Banners)
- Swing-Out Lights – Upper Deck Turn/Flashing Lights (NA w/Chain/Rub Rail)
- Swing-Out Lights – Lower Deck Turn/Flashing Lights
- Swing-Out Lights – Upper Deck Marker Lights, Amber Front, Red Rear (NA w/Chain/Rub Rail)
- Swing-Out Lights – Lower Deck Marker Lights, Amber Front, Red Rear
- Magnetic LED Amber Warning Lights (360°, Battery Powered)
Suspension and Undercarriage
- Hydraulic Dock Leveler, 2 Legs (62K Capacity)
- Air Dump Valve
- Scale System – Liquid Filled Air Pressure Gauge
- Scale System – Air-Weigh LoadMaxx Digital Scale (Trailer Only)
- LoadMaxx ComLink Cable Kit (Cable Connects Trailer Unit to Tractor Scale) (Requires LoadMaxx Digital Scale)
- Shock Straps, Wire Rope
- Hardened Undercarriage Cylinders (Recommended with the Arctic Package)
- Powder Coat Bumper (Standard)
- Hot Dip Galvanized Bumper(In Lieu of Standard) (Included with Galvanized Frame)
Hydraulic Power Source
- Hydraulic Quick Coupler Kit (1 Male/1 Female)
- Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover – Upper Deck Mounted
- Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover – Front Extension Mounted
Tire and Rims
- 17.5 Machined Aluminum Wheel (Priced Per Tire)
- 17.5 Polished Aluminum Wheel (Priced Per Tire)
- 17.5 Machined Aluminum Wheel (Priced Per Tire)
- 17.5 Polished Aluminum Wheel (Priced Per Tire)
- Tires – 235/75R 17.5 Continental
- Tires – 245/70R 17.5 Michelin
- Tires – 255/70R 22.5 Double Coin
- Tires – 255/70R 22.5 Continental
- Tires – 255/70R 22.5 Michelin
For 17.5 Tires
- 5 Steel Hub Wheel (8 Bolt) (Standard)
- 5 Machined Aluminum Wheel (8 Bolt) (Price for 2 Axles Outside Only)
- 5 Polished Aluminum Wheel (8 Bolt) (Price for 2 Axles Outside Only)
For 22.5 Tires
- 5 Steel Hub Wheel (10 Bolt) (Standard)
- 5 Machined Aluminum Wheel (10 Bolt) (Price for 2 Axles Outside Only)
- 5 Polished Aluminum Wheel (10 Bolt) (Price for 2 Axles Outside Only)
- Number of Spare 235/75R 17.5 Double Coin Tires – 1 or 2
- Number of Spare 235/75R 17.5 Continental Tires – 1 or 2
- Number of Spare 245/70R 17.5 Michelin Tires – 1 or 2
- Number of Spare 255/70R 22.5 Double Coin Tires – 1 or 2
- Number of Spare 255/70R 22.5 Continental Tires – 1 or 2
- Number of Spare 255/70R 22.5 Michelin Tires – 1 or 2
- Spare Wheel Type – 17.5 Machined Aluminum Wheel (8 Bolt) (1 Spare or 2 Spare)
- Spare Wheel Type – 17.5 Polished Aluminum Wheel (8 Bolt) (1 Spare or 2 Spare)
- Spare Wheel Type – 22.5 Machined Aluminum Wheel (10 Bolt) (1 Spare or 2 Spare)
- Spare Wheel Type – 22.5 Polished Aluminum Wheel (10 Bolt) (1 Spare or 2 Spare)
- Tire Air System – Crossfire Air Equalizers
- PSI Tire Inflation System
- Hubometer
- Dust Shields (For 22.5 Tires Only)
Paint and Special Options
- Standard Landoll Branded Decals (Affects Lower Deck Only)
- Undercoating (Petroleum Based)
- Anti-Slip Paint on Inner and Outer Flanges – Black
- Anti-Slip Paint on Inner and Outer Flanges – Yellow
- Hot Dip Galvanizing (includes Bumper)
- Powder Coat Paint only available with Non-Galvanized Trailers
- Powder Coat Paint Colors – Black (Standard), Anniversary Gray, White, Red, Viper Red, Green, Blue, Sapphire Blue, Yellow
- Paint over Galvanizing (Side Frame Web Only)
- Paint over Galvanizing (Top Surfaces)
- Wet Paint color choice for Galvanized Trailer
- Wet Paint Colors – Black (Standard), Anniversary Gray, White, Red, Viper Red, Green, Blue, Sapphire Blue, Yellow

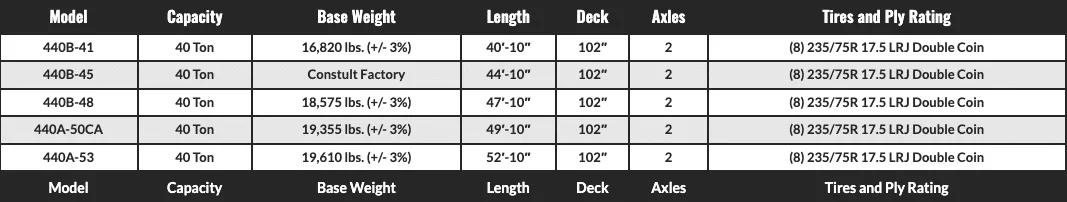

Specs
